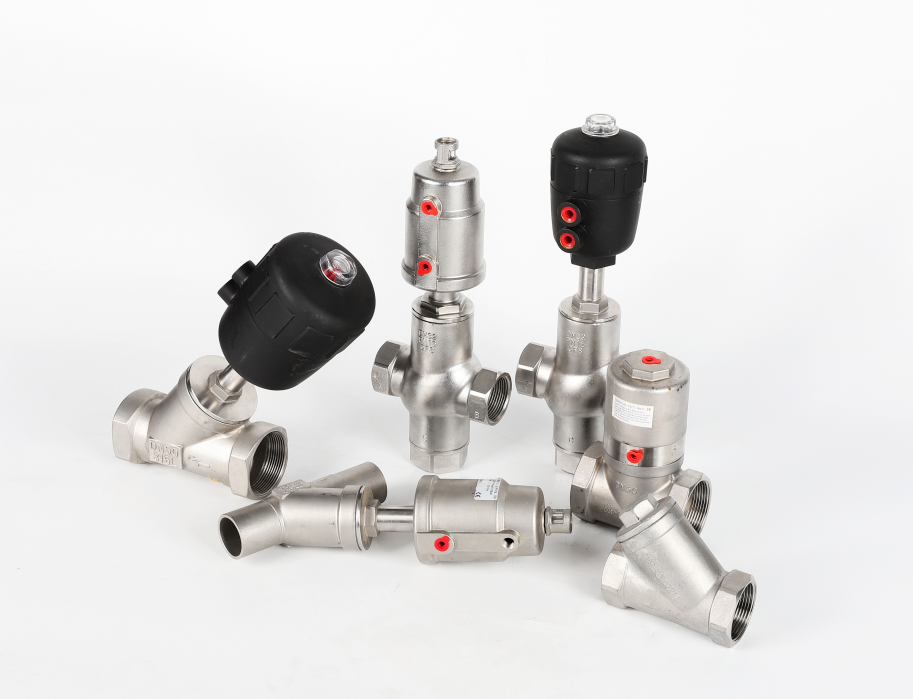

1. Key Innovations
✅ Zero Water Hammer Mute Technology- Bi-directional flow design: inflow above the valve seat (steam/gas enhances sealing), inflow below (liquid automatically absorbs impact), completely eliminating pipeline vibration and noise.
✅ 360° Intelligent Installation
- Pneumatic actuator can be rotated in all directions, adapting to horizontal/vertical/inclined pipelines; Namur standard interface quickly integrates solenoid valves/limit switches.
✅ Ultra-low air consumption and energy saving
- Only 0.4~0.7MPa driving pressure is required (40% energy-saving compared with similar), single-acting spring reset ensures automatic valve shutdown in case of air source failure, guaranteeing system safety.
✅ Aseptic grade technology
- The 316L valve body is mirror polished (Ra≤0.8μm), with zero-dead-angle structure to eliminate microbial residues, FDA/3-A certified, and suitable for CIP/SIP cleaning process.
2. Technical Specifications
|
Parameters |
Standard configuration |
Extended options |
|
Body Material |
PTFE (-30℃~+180℃) |
F46 (+220℃)/EPDM (Food Grade) |
|
Sealing Material |
PTFE (-30℃~+180℃) |
F46 (+220℃)/EPDM (Food Grade) |
|
Connection Method |
Butt Weld/Socket Weld ( ASME B16.25) |
Quick-fit/Threaded (customized) |
|
Nominal Diameter |
DN10-DN80 (standard) |
DN100-DN150 (high-pressure type) |
|
Pressure Range |
0~16 bar (Vacuum to PN25) |
40 bar (PN40 customized) |
|
Temperature Range |
-20℃~+200℃ |
+300℃ (autoclave type) |
|
Actuator Type |
Single Acting (Normally Open/Normally Closed)/Double Acting |
Explosion Proof Pneumatic Heads/Manual Emergency Switches |
|
Life Cycle |
≥5 Million Openings and Closings |
10 Million Openings and Closings (High Frequency) |
|
Certification Standards |
ISO 9001, RoHS |
3-A, FDA, ASME BPE |
3. Industry Applications
- Aseptic Filling Line: CIP line control for beer/dairy (mirror polish + FDA approved)
- Bioreactors: precise addition of culture media (zero dead space design, GMP Class C compliant)
High temperature and high pressure scenarios
- Steam sterilization equipment: 180°C saturated steam control (F46 seals resistant to 300°C)
- Chemical reactor: thermal oil/acid transportation (316L valve body resistant to strong corrosion)
Environmental Protection and Automation
- Wastewater treatment systems: metered injection of acid and alkali fluids (PTFE seals for corrosion resistance)
- High-frequency cooling cycle: fast start-up and shutdown of laser equipment (0.2 second response, 1000 times/hour)
4. Customization Options
▸ Actuator Configurations: Normally open (gas shutdown safety mode), Normally closed (spring-loaded emergency shutdown), Dual-acting (stabilized gas supply scenario)
▸ Intelligent accessories:
- Limit switch: valve position feedback signal (PLC interlock control)
- Explosion-proof solenoid valve: 24VDC/220VAC (Ex d IIC T6 certification)
- Electrical positioner: 4-20mA remote flow accurate adjustment
▸ Special working conditions adapted:
- Deep cold treatment: -50 ℃ liquid nitrogen environment (special sealing package)
- Coated stem: hydrofluoric acid solvent corrosion-resistant coating
- Sanitary upgrades: triple-clamp quick-fit connections (DIN11851 standard)
