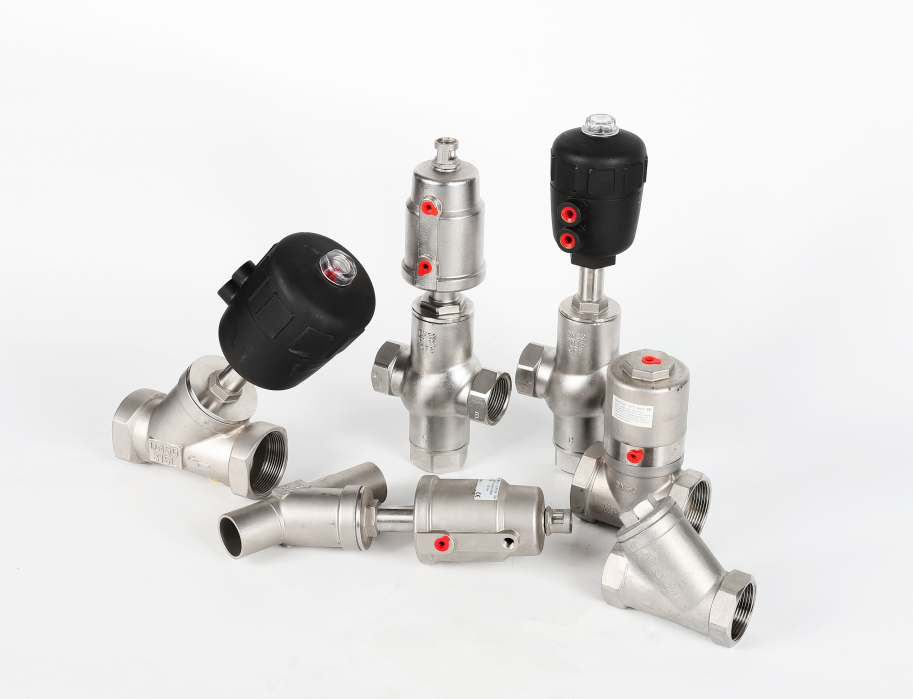

1. Key Innovations
30% flow rate increase
Exclusive Y-type flow path design, compared with the traditional angle seat valve flow resistance is reduced by 45%, the KV value of up to 52m³/h (DN50), significantly improving the delivery efficiency.
Zero water hammer protection
Bi-directional flow design (above/below seat inflow):
Below seat inflow: automatically absorbs water impact to protect precision equipment
Above seat inflow: for steam/gas, enhanced sealing
360° flexible installation
pneumatic actuator can be rotated in all directions, limit switches support multi-angle positioning, adapt to the piping layout of the narrow space.
Ultra-low air consumption energy saving
Only 0.4~0.7MPa air pressure is needed to drive, 40% energy saving compared with similar products, compatible with the conventional pneumatic system in factories.
2. Technical Specifications
|
Parameters |
Standard Configurations |
Extended Options |
|
Body Material |
316L Stainless Steel (Mirror Polished) |
304/Carbon Steel (Industrial Grade) |
|
Sealing Material |
PTFE (-30℃~+180℃) |
F46 (+220℃)/EPDM (Food Grade) |
|
Connection Method |
Clamp (Sanitary) |
Threaded/Flange /Welding |
|
Nominal Diameter |
DN15-DN80 (standard) |
DN100 (customized) |
|
Pressure Range |
0~16 bar (Vacuum to PN25) |
40 bar (High Pressure Type) |
|
Temperature Range |
-10℃~+220℃ |
+300℃ (High Temperature Sterilizing Type) |
|
Actuator Type |
Single Acting (Spring Return) |
Double acting | Explosion-proof pneumatic head |
|
Protection class |
IP65 |
IP68 (submersible) |
|
Certification standards |
ISO 9001 |
3-A, ASME BPE |
3. Industry Solutions
Food & Beverage
- Beer filling line CIP cleaning, fermenter feed control (acid and alkali resistant media)
- Dairy pipeline aseptic conveyance (fully polished valve body to eliminate microbial residues)
Pharmaceutical Bioengineering
- Purified water system, bioreactor media addition (GMP Class C)
- Sterilization cabinet steam precision control (300 ℃ high temperature and high pressure resistance)
Chemical environmental protection
- Acid and alkali liquid metering injection, wastewater treatment valve sets (PTFE sealing corrosion resistance)
- Pneumatic conveying of viscous fluids/powders (high-flow anti-clogging design)
Laboratory and General Industry
- Laboratory equipment dripping system (0.2 seconds fast response)
- Energy saving control for compressed air lines (low air consumption technology)
4. Customization Options
▸ Actuator configurations: single-acting (normally open/closed), double-acting, manual emergency switches
▸ Smart Accessories:
- Limit switches (valve position feedback)
- Solenoid valves (24VDC/110VAC explosion-proof optional)
- Pneumatic positioner (precise flow adjustment)
▸ Special Processes:
- Ultra-low temperature treatment (-50°C deep-cooling applications)
- Coated stem (resistant to strong acids)
